Changing displaying parameters

In GEOM you can set different displaying parameters for visualization of geometrical objects in the viewer:





To set displaying parameters of a geometrical object:



Right-click on this geometrical object in the viewer and from the pop-up menu select Properties.





Wireframe/Shading



Description: Set the display mode of the selected shape.



TUI Command: gg.setDisplayMode(ID, Short)



Example:

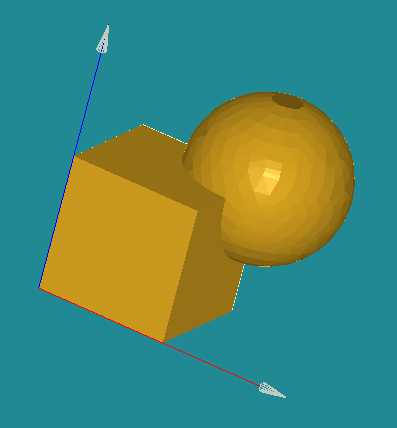

Color



Description: Change the color of a shape.



TUI Command: gg.setColor(ID, Short, Short, Short)



Example:











Transparency



Description: Change the transparency (between 0 & 1) of a shape.



TUI Command: gg.setTransparency(ID, Double)



Dialog Box:





Example:







Isos



Description: Changes the number of isolines displayed within a shape.



Arguments: 2 values (number of isolines).



Dialog Box:





Example:







Our TUI Scripts provide you with useful examples of Changing Displaying Parameters.
